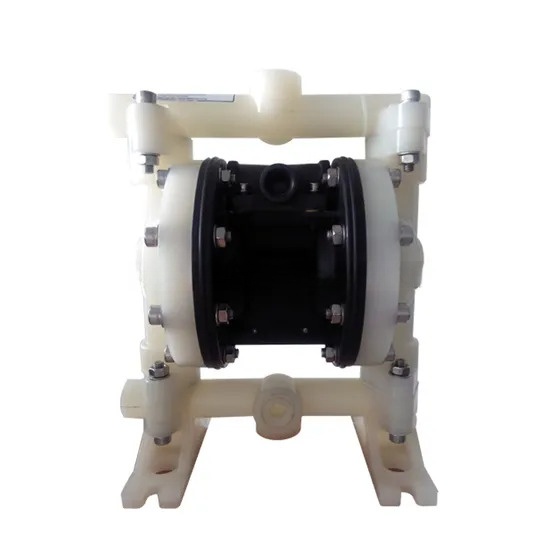

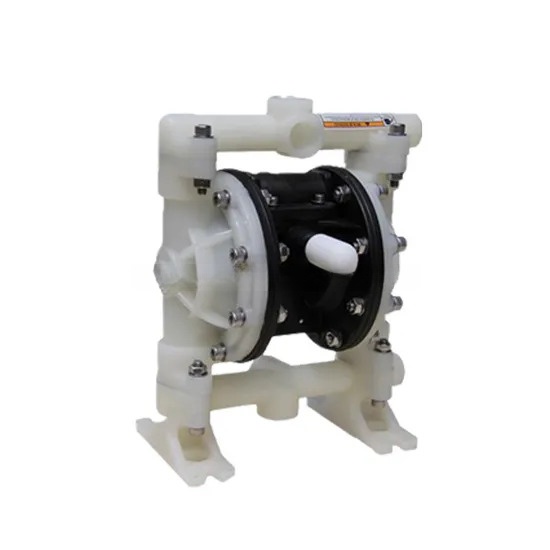

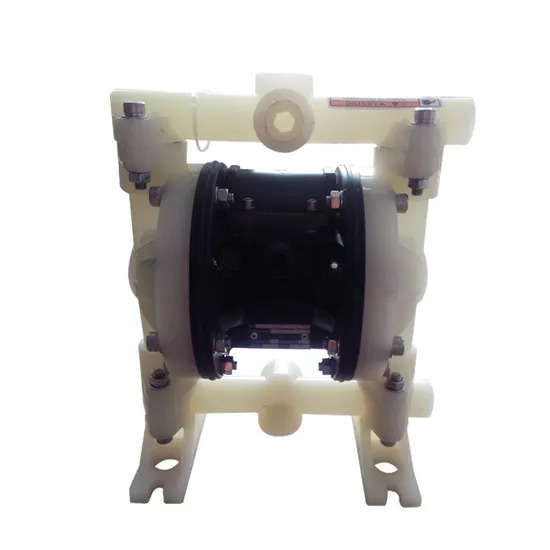

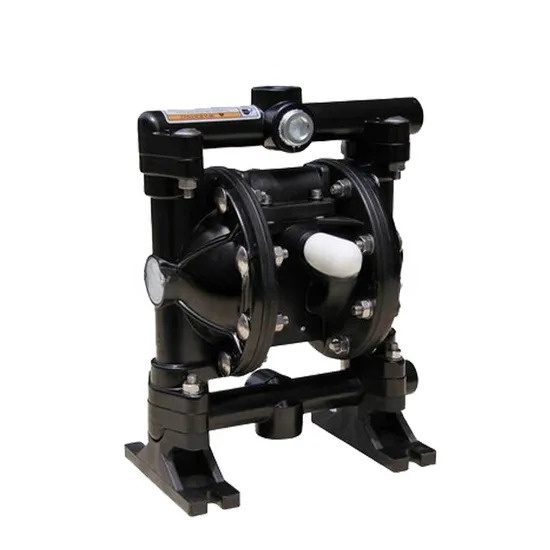

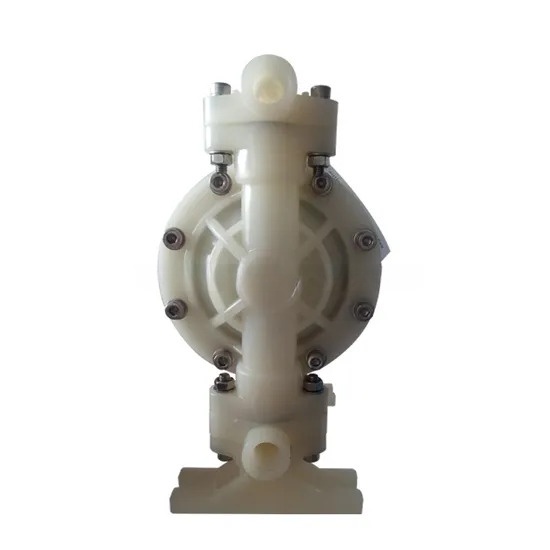

Engineered for conveying challenging fluids, this self-priming pump excels in transferring viscous, corrosive, and particle-laden media.
Driven entirely by compressed air, ensuring safe operation in hazardous or explosive environments without electrical power.
Features a robust self-priming capability with a dry suction lift of up to 4 meters and a wet suction lift of 7.6 meters.
Constructed from durable Polypropylene (PP), offering excellent resistance to corrosion for chemical transfer applications.
Capable of handling liquids containing particles up to 2.5mm in diameter without damage to the pump mechanism.
The simple, seal-less design prevents leaks and allows for dry running without causing harm to the pump components.
Versatile application range, including the transfer of paint, ceramics, wastewater, acids, and alkalis.
Max Flow Rate: 57 L/min (3.42 m³/h)
Max Discharge Head: 70 m
Max Discharge Pressure: 7 Bar (0.7 MPa)
Inlet/Outlet Connection: 1/2 Inch NPT/BSPT
Max Solid Particle Diameter: 2.5 mm
Air Inlet Size: 3/8 Inch
